Products > Aluminum Electrolytic Capacitors > CD60 Motor start capacitors > AC starting capacitor

Product name : AC starting capacitor

Product No. : 2015115224412

←[Previous Product] [Next Product]→

Online Inquiry Email Us

Details:

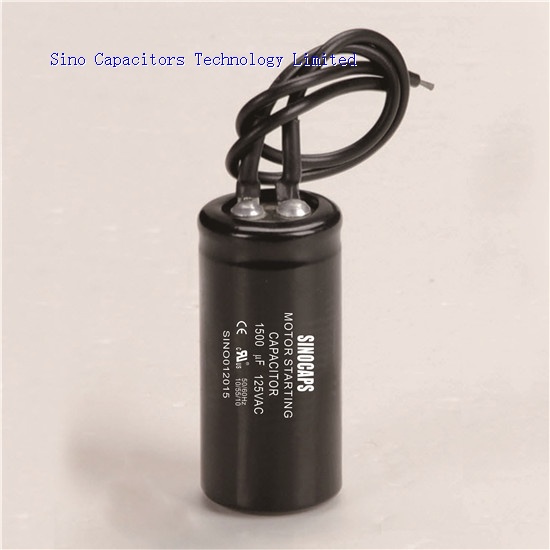

SINO #CD60 Motor starting capacitor

1. Safe and long life

2. Standard:CE, ROHS, UL, TUV

3. Pollution-free, energy-saving

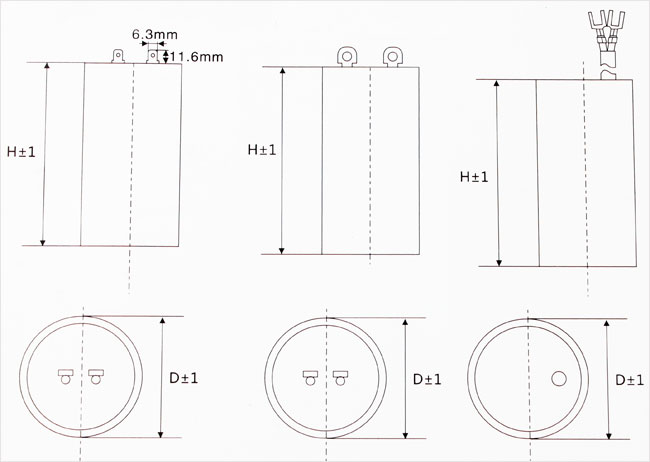

SINO CD60 Starting capacitor adopted high-purity electronic aluminum foil electrode, alumina media, and non solid electrolyte. It’s round aluminum sealed case with PVC sleeve, quick connect/solder lugs terminals.

The start capacitor will promote motor torque, at the low starting current. It with good insulation, high strength, no leakage, anti-moisture, anti-vibration, and can bear larger external force.

SINO start capacitor use in single-phase AC motor, air conditioning, refrigerator compressor and so on.

MSDS of SINO #CD60 Starting capacitor

Capacitance Range	3μF~1500μF
Rated Voltage	110VAC~330VAC(50/60Hz)
Capacitance Tolerance	±10%，±15%，±20% or Fulfilled upon request
Loss Tangent	Tgδ≤0.15（20℃, 100Hz）
Standard Temperature	-20℃~+60℃
Between derivation terminals	AC≥1.2Un 2S no breakdown
Between derivation terminals and case	AC≥2000V 2S no breakdown
Durability	R.voltage〉=160v,charged once per minute,last 1S,total 30000 times
Durability	R.voltage〈160V, charged once per 30S,last 1S,total 75000 times
Executing Standard	EIA463、IEC60252-2:2003
