Product name : Switch capacitor
Product No. : 2016111154033
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:

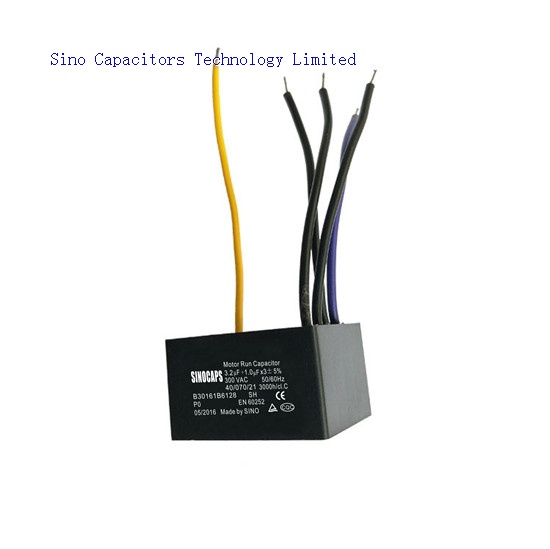

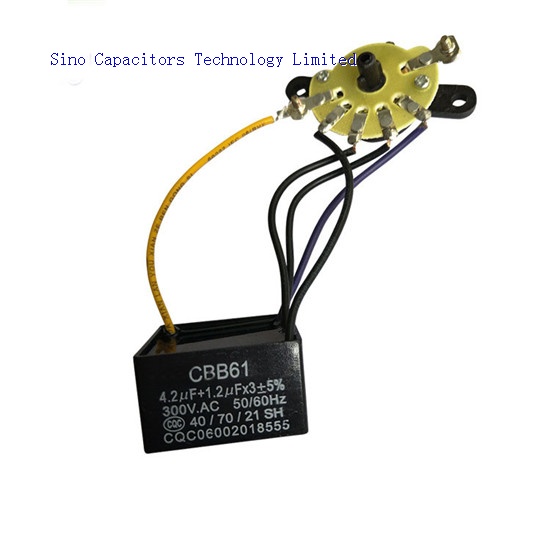

 SINO #CBB61 Switch capacitor

Detailed Product Description:
1. Used widely in motors, fans.
2. High performance & Long life Capacitor.
3. Work well even in hot area.

Main Feature:
Low dissipation factor,small inherent temperature rise.excellent
self-healing stability,safety and high voltage withstand,etc.

Applications:
To start and run single phase motors in alternating current usage.


SINO #CBB61 Switch capacitor
 Capacitance Range 1μF~30μF
Rated Voltage 250VAC~500VAC(50/60Hz)
Capacitance Tolerance ±5% or Fulfilled upon request
Loss Tangent Tgδ≤0.002(50Hz-100Hz)
Standard Temperature -25℃~+70℃、-40℃~+85℃
Climate Class 25/70/21, 40/85/21
Test Voltage Between terminals AC≥2.00Un 2S NO BREAKDOWN
Between terminals and case  AC≥2000V 2S NO BREAKDOWN
 Insulation Resistance Between terminals Rj·C≥3000MΩ.μF
Between terminals and case Rj≥1000 MΩ.μF
 Security Level P0, P1, P2
 Executing Standard GB/T3667.1-2005, IEC60252-1:2001, IEC252
